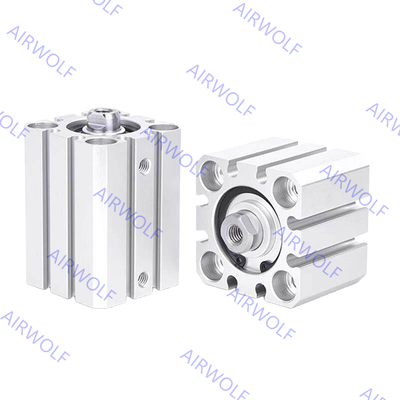

Name: Mindman MCJA-11-25-35 MCJA-11-25-40 MCJA-11-25-45 MCJA-11-25-50 Double acting Compact Cylinder
Brand: Airwolf Automation
SKU: MCJA-11-25-35، MCJA-11-25-40، MCJA-11-25-45، MCJA-11-25-50
Price: 34.00 USD
Availability: InStock

منزل المنتجات هوائيّ هواء أسطوانة

Mindman MCJA-11-25-35 MCJA-11-25-40 MCJA-11-25-45 MCJA-11-25-50 Double acting Compact Cylinder

تفاصيل المنتج:

مكان المنشأ:	تايوان، الصين
اسم العلامة التجارية:	Mindman, AIRWOLF or OEM
إصدار الشهادات:	CE, ISO9001
رقم الموديل:	MCJA-11-25-35، MCJA-11-25-40، MCJA-11-25-45، MCJA-11-25-50

شروط الدفع والشحن:

الحد الأدنى لكمية:	1 قطعة
الأسعار:	5-63USD
تفاصيل التغليف:	صناديق، كرتون، بالتات، أكياس بلاستيكية
وقت التسليم:	1-7 أيام عمل
شروط الدفع:	/ تي تي، ويسترن يونيون، باي بال
القدرة على العرض:	1000 جهاز كمبيوتر شخصى في الأسبوع

اتصل

مفصلة وصف المنتج

رمز العنصر:	MCJA-11-25-35، MCJA-11-25-40، MCJA-11-25-45، MCJA-11-25-50	مادة الجسم:	سبائك الألومنيوم
مواد التعبئة المكبس:	نبر	ضغط العمل:	0.05 ~ 1 ميجا باسكال
درجة حرارة التشغيل:	-5~+60 درجة مئوية (بدون تجميد)	وسط العمل:	هواء
حجم التجويف:	25 ملم	وظيفة:	التمثيل المزدوج
إبراز:	Double acting Compact Cylinder with warranty , Pneumatic Air Cylinder MCJA series , Compact Cylinder double acting MCJA

Mindman MCJA-11-25-35 MCJA-11-25-40 MCJA-11-25-45 MCJA-11-25-50 Double acting Compact Cylinder

In practice the MCJA shows up most often in space-constrained automation—jig-and-fixture clamping, pick-and-place heads on compact assembly cells, packaging machines, electronic-component handlers, and any station where a robot wrist or linear module needs a short-stroke pusher or clamp that doesn't add bulk. Because the sensor groove and countersunk mounting are part of the extrusion itself, machine builders can drop the cylinder into a tight envelope, route the switch wiring along the body, and keep the surrounding mechanism simple—something that matters on high-density dial indexes, multi-head press stations, and benchtop automated workcells where every millimeter counts.

Order Codes:

Item Code	Piston (mm)	Stroke (mm)	Type
MCJA-11-25-35	25	35	Double acting
MCJA-11-25-40	25	40	Double acting
MCJA-11-25-45	25	45	Double acting
MCJA-11-25-50	25	50	Double acting

Specification:

Model		MCJA
Acting type		Double acting / Single acting							Double acting
Tube I.D. (mm)		12	16	20	25	32	40	50	63	80	100
Port size		M5×0.8				Rc1/8		Rc1/4			Rc3/8
Medium		Air
Operatingperssurerange (MPa)	Double acting	0.05~1		0.03~1		0.02~1
	Single acting	0.2~1		0.15~1		0.1~1			—
Proof pressure		1.5 MPa
Ambient temperature		-5°C~+60°C (No freezing)
Available speed range		50~500 mm/sec

Material:

Mindman MCJA-11-25-35 MCJA-11-25-40 MCJA-11-25-45 MCJA-11-25-50 Double acting Compact Cylinder

Dimensions:

Mindman MCJA-11-25-35 MCJA-11-25-40 MCJA-11-25-45 MCJA-11-25-50 Double acting Compact Cylinder
