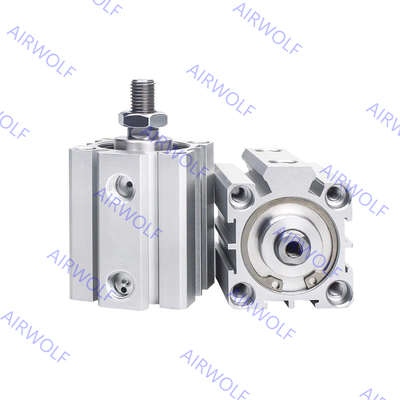

Name: MCJA-11-12-5 MCJA-11-12-10 MCJA-11-12-15 MCJA-11-12-20 Mindman Double acting Compact Cylinder
Brand: Airwolf Automation
SKU: MCJA-11-12-5، MCJA-11-12-10، MCJA-11-12-15، MCJA-11-12-20
Price: 34.00 USD
Availability: InStock

منزل المنتجات هوائيّ هواء أسطوانة

MCJA-11-12-5 MCJA-11-12-10 MCJA-11-12-15 MCJA-11-12-20 Mindman Double acting Compact Cylinder

تفاصيل المنتج:

مكان المنشأ:	تايوان، الصين
اسم العلامة التجارية:	Mindman, AIRWOLF or OEM
إصدار الشهادات:	CE, ISO9001
رقم الموديل:	MCJA-11-12-5، MCJA-11-12-10، MCJA-11-12-15، MCJA-11-12-20

شروط الدفع والشحن:

الحد الأدنى لكمية:	1 قطعة
الأسعار:	5-63USD
تفاصيل التغليف:	صناديق، كرتون، بالتات، أكياس بلاستيكية
وقت التسليم:	1-7 أيام عمل
شروط الدفع:	/ تي تي، ويسترن يونيون، باي بال
القدرة على العرض:	1000 جهاز كمبيوتر شخصى في الأسبوع

اتصل

مفصلة وصف المنتج

رمز العنصر:	MCJA-11-12-5، MCJA-11-12-10، MCJA-11-12-15، MCJA-11-12-20	مادة الجسم:	سبائك الألومنيوم
مواد التعبئة المكبس:	نبر	ضغط العمل:	0.05 ~ 1 ميجا باسكال
درجة حرارة التشغيل:	-5~+60 درجة مئوية (بدون تجميد)	وسط العمل:	هواء
حجم التجويف:	12 ملم	وظيفة:	التمثيل المزدوج
إبراز:	Mindman double acting pneumatic cylinder , Compact air cylinder with warranty , MCJA series pneumatic actuator

MCJA-11-12-5 MCJA-11-12-10 MCJA-11-12-15 MCJA-11-12-20 Mindman Double acting Compact Cylinder

The Mindman MCJA Series is a line of ultra-compact, lightweight pneumatic cylinders built for machinery where installation space is at a premium, offering both single-acting and double-acting configurations across a practical bore-size range so engineers can specify the right force without oversizing the footprint. Its low-profile body keeps the actuator flush with adjacent components, making it a natural fit for tandem or closely packed cylinder layouts where a standard ISO-profile cylinder would simply not fit.

Order Codes:

Item Code	Piston (mm)	Stroke (mm)	Type
MCJA-11-12-5	12	5	Double acting
MCJA-11-12-10	12	10	Double acting
MCJA-11-12-15	12	15	Double acting
MCJA-11-12-20	12	20	Double acting

Specification:

Model		MCJA
Acting type		Double acting / Single acting							Double acting
Tube I.D. (mm)		12	16	20	25	32	40	50	63	80	100
Port size		M5×0.8				Rc1/8		Rc1/4			Rc3/8
Medium		Air
Operatingperssurerange (MPa)	Double acting	0.05~1		0.03~1		0.02~1
	Single acting	0.2~1		0.15~1		0.1~1			—
Proof pressure		1.5 MPa
Ambient temperature		-5°C~+60°C (No freezing)
Available speed range		50~500 mm/sec

Material:

MCJA-11-12-5 MCJA-11-12-10 MCJA-11-12-15 MCJA-11-12-20 Mindman Double acting Compact Cylinder

Dimensions:

MCJA-11-12-5 MCJA-11-12-10 MCJA-11-12-15 MCJA-11-12-20 Mindman Double acting Compact Cylinder

Our Company:

Airwolf Automation is a world-renowned supply chain management company. A complete supply chain with 500,000 industrial parts can be supplied to 160 countries.

More than a thousand cooperative brands, super supply chain management ability, to ensure the fastest speed to meet your procurement needs.

Delivery:

1. If the products we have in store, we will send it out ASAP after payment.

2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.

3. Also we can send by your delivery acount if you want.

4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.

Q&A:

1. Q: Do you provide warranty for the goods?

A: Yes, we provide warranty for all the goods from us.

2. Q: Could seek best provide technology support?

A: We're in this field more than 10 years. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.

3. Q: Does seek best keeps goods in stock or only trading?

A: We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.

4. Q:How about the terms of payment?

A:Generally through T/T and Paypal,Western Union also accept.
