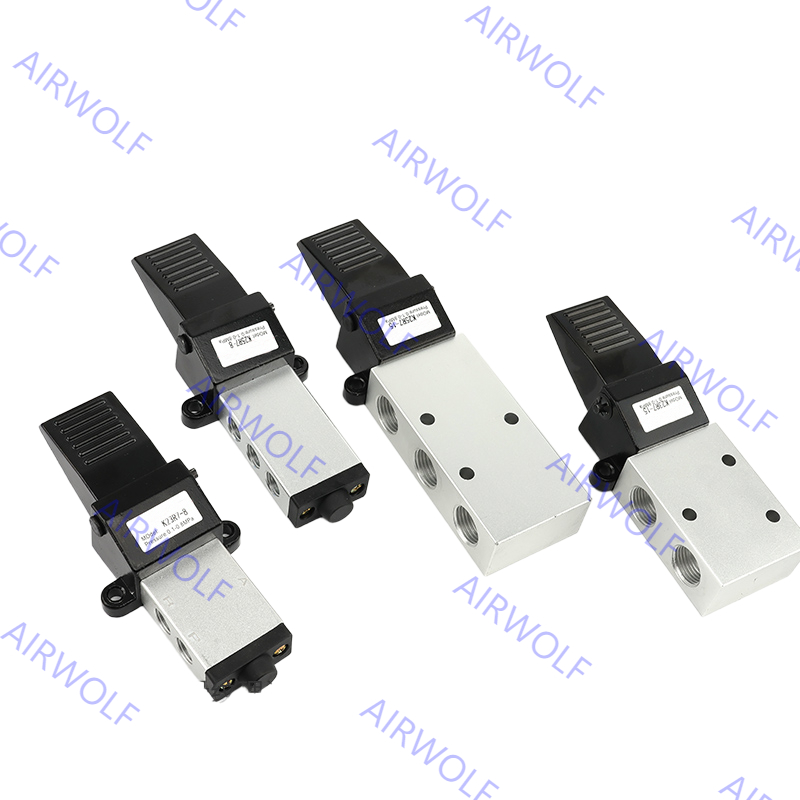

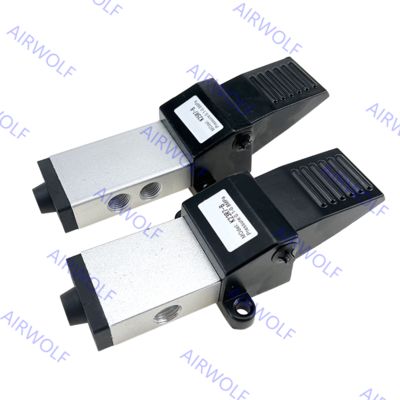

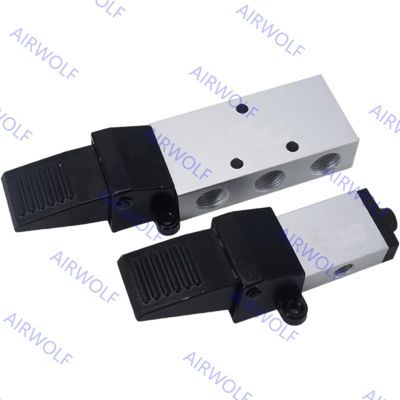

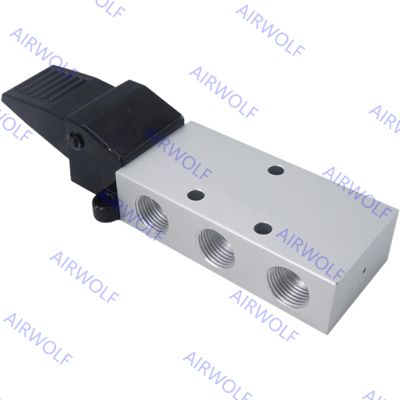

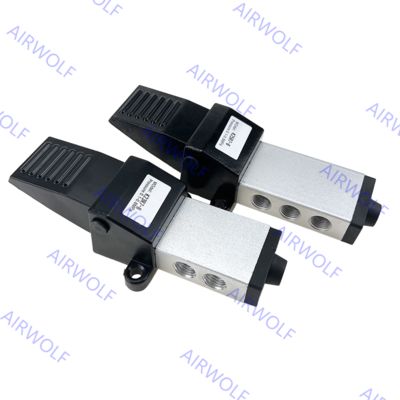

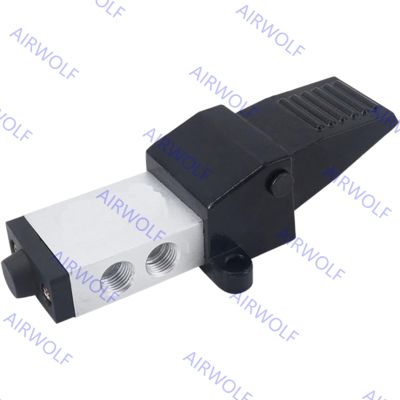

Name: K23R7-8, K25R7-8, K25R7-15 3/2 way, 5/2 way Aluminum Alloy Foot Valve 1/4", 1/2"
Brand: Airwolf Automation
SKU: K23R7-8، K25R7-8، K25R7-15
Price: 7.00 USD
Availability: InStock

منزل المنتجات صمام هوائيّ يدويّ

K23R7-8, K25R7-8, K25R7-15 3/2 way, 5/2 way Aluminum Alloy Foot Valve 1/4", 1/2"

تفاصيل المنتج:

مكان المنشأ:	الصين
اسم العلامة التجارية:	AIRWOLF or OEM
رقم الموديل:	K23R7-8، K25R7-8، K25R7-15

شروط الدفع والشحن:

الحد الأدنى لكمية:	قطعة واحدة
الأسعار:	5-9USD
تفاصيل التغليف:	صناديق، كرتون، بالتات، أكياس بلاستيكية
وقت التسليم:	1-7 أيام العمل
شروط الدفع:	/ تي تي، ويسترن يونيون، بايبال
القدرة على العرض:	1000 جهاز كمبيوتر في الأسبوع

اتصل

مفصلة وصف المنتج

مادة الجسم:	سبائك الألومنيوم	مواد الأختام:	NBR
ضغط التشغيل:	0 ~ 0.8 ميجا باسكال	نطاق درجة حرارة العمل:	–10~+55 درجة مئوية
حجم الميناء:	ربع بوصة و نصف بوصة	موضع:	3/2 طريق، 5/2 طريق
وظيفة:	التحكم في الاتجاه	وسيلة العمل:	الهواء المضغوط الجاف المصفى بواسطة 40μm
إبراز:	aluminum alloy foot valve,3/2 way pneumatic manual valve,5/2 way foot valve with warranty , 3/2 way pneumatic manual valve , 5/2 way foot valve with warranty

K23R7-8, K25R7-8, K25R7-15 3/2 way, 5/2 way Aluminum Alloy Foot Valve 1/4", 1/2"

Functionally designed for hands-free operation in industrial settings, the K23R7 and K25R7 series foot valves are characterized by their simple reversing mechanism, small size, and robust performance. They share common technical parameters, including an operating temperature range of -5°C to 60°C (or up to 50°C for some models) and require filtered compressed air to function effectively.

A notable feature of these valves is their minimal internal leakage rate, specified as ≤50 cm³/min, which ensures efficient system operation.

When installing these valves, it is crucial to check for transport damage, ensure the correct airflow direction, and keep the components free of dust, with a recommendation to install mufflers on the exhaust ports.

Order Codes:

Type	Port Size	Positions
K23R7-8	1/4"	3/2 way
K25R7-8	1/4"	5/2 way
K25R7-15	1/2"	5/2 way

Specification:

Model	K23R7-8 K25R7-8	K25R7-15
Port size	G1	G1/4
Fluid	Dry Compressed air filtered by 40μm
Operation (Mpa)	0～0.8
Fluid temperature(℃)	-10～55
Ambient temperature	-5～50
Effective area(mm²)	10	20
Leakage rate(cm3min)	≤50
Operating force(kg)	≤80	≤100
Operating life	≥20
